Product Name:

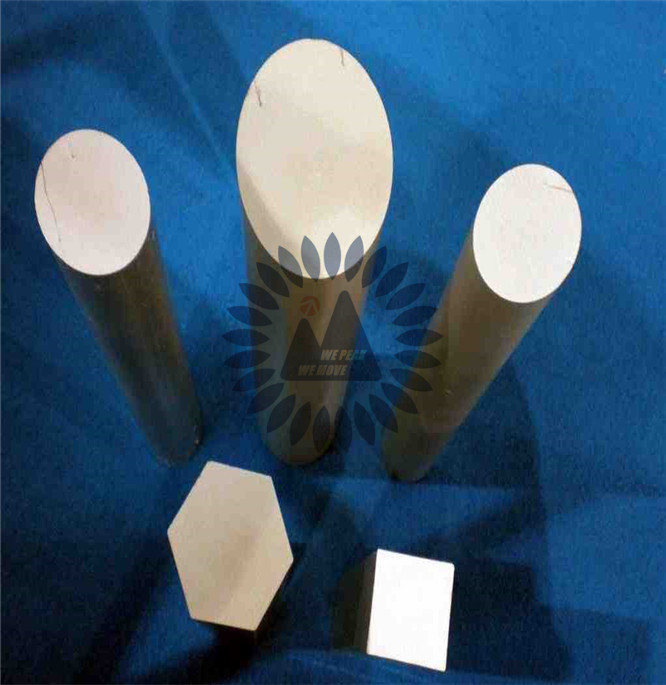

Stainless Steel Round Square Hexagonal Bar
:
:
:
|
The Stainless Steel Round, Square, Hexagonal bars are named as their sections of round, square, hexagonal or irregular states, devided as hot rolled, cold draw and forged technologies etc, which are used in almost every civil and industrial fields.
Peak Metal, always treats product quality as company core heart, having full experiences on supplying kinds of stainless steel round bar, stainless steel square bar and stainless steel hexagonal bar with different grades and sizes.
We deliver every cargo to our clients with not only values but also serious commitments, no matter endusers or distributors abroad, guaranteed material quality and delivery period for all our respectful customers.
● Available Specifications
Item
|
Grades
|
Standards
|
Dimensions (mm)
|
Tolerance
|
Delivery State
|
Dia./Side
|
Length
|
SS Round
bar (Rod)
|
201/202;
301/303/304(L)/
310S/316(L/Ti)/
317L/321/347H;
409/410/420/
430F/431/440C
|
ASTM,
AISI,
JIS, GB,
BS, DIN,
EN, STS
|
Dia: 3~400
φ10-φ120 (HR),
φ3-φ80 (CD),
φ50-φ400 (Fgd)
|
2-10
meters
or
Custmizd
|
H8~H10
acc. to
A484(M)
and ISO
|
Hot rolled&pickling,
Forged, Cold draw,
Peeling, Polishing,
Grinding,
Sand Blasting or
acc. to request.
|
SS Square
Hexagonal
bar
|
S2 ~ S80
S2-S80 (CD),
S8-S70 (HR)
|
● Applications
Cookware, Bolier component, cupboard, Auto parts, Medical equipment, Food industry, Shipbuilding, Paper, Mechanical components etc.
● Tolerances Table
Diameter
(mm)
|
Tolerance Precision (mm)
|
H6
|
H7
|
H8
|
H9
|
H10
|
H11
|
3Max
|
0 -0.006
|
0 -0.010
|
0 -0.014
|
0 -0.025
|
0 -0.040
|
0 -0.060
|
3--6
|
0 -0.008
|
0 -0.012
|
0 -0.018
|
0 -0.030
|
0 -0.048
|
0 -0.075
|
6--10
|
0 -0.009
|
0 -0.015
|
0 -0.022
|
0 -0.036
|
0 -0.058
|
0 -0.090
|
10--18
|
0 -0.011
|
0 -0.018
|
0 -0.027
|
0 -0.043
|
0 -0.070
|
0 -0.110
|
18--30
|
0 -0.013
|
0 -0.021
|
0 -0.033
|
0 -0.052
|
0 -0.084
|
0 -0.130
|
30--50
|
0 -0.016
|
0 -0.025
|
0 -0.039
|
0 -0.062
|
0 -0.100
|
0 -0.160
|
50--80
|
0 -0.019
|
0 -0.030
|
0 -0.046
|
0 -0.074
|
0 -0.120
|
0 -0.190
|
80--120
|
0 -0.022
|
0 -0.035
|
0 -0.054
|
0 -0.087
|
0 -0.140
|
0 -0.220
|
120--180
|
0 -0.025
|
0 -0.040
|
0 -0.063
|
0 -0.100
|
0 -0.160
|
0 -0.250
|
|
|
