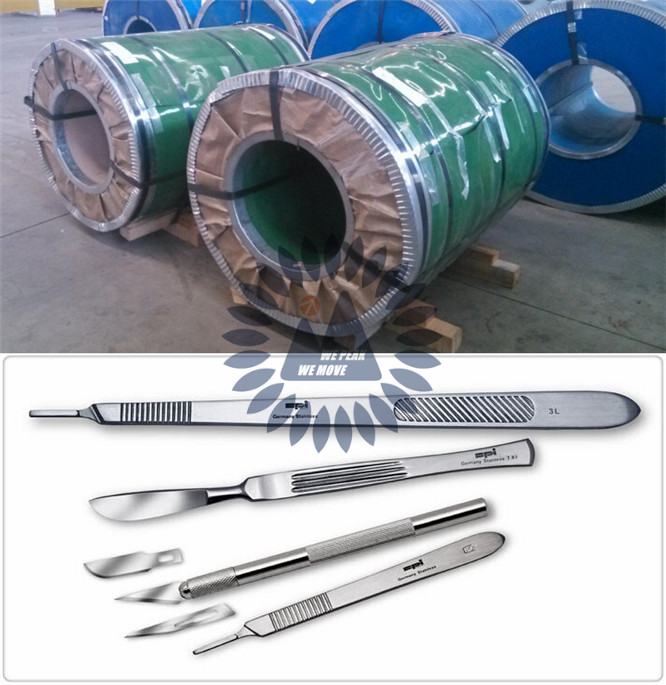

420 420J2 Stainless Steel Coil

Products

Product Name:

420 420J2 Stainless Steel Coil

420 (420J1) Stainless Steel and 420J2 Stainless Steel are typical Martensitic stainless steel with certain resistance to friction and corrosion, higher hardness but competitive price, which are suitable to use in environment with general conditions.

Peak Metal, always treat quality as company core heart, has good experiences on supplying both 420 stainless steel and 420J2 stainless steel with commitments to endusers and stockiests abroad, guaranteed material quality and delivery period for all our valued customers.

● Available Specification

Item	Standard	Finish	Thick. (mm)	Width (mm), Master Coil Sizes						Remark
Item	Standard	Finish	Thick. (mm)	1000	1219	1250	1500	1800	2000	Remark
420 420J2 Stainless Steel Coil	ASTM JIS GB	No.1 (1D)	3.0~8.0		※	※	※			1.Cut length upto 12 meters 2.Both sides polish
420 420J2 Stainless Steel Coil	ASTM JIS GB	2B, No.4, BA	0.5~3.0	※	※	※				1.Cut length upto 12 meters 2.Both sides polish

● Features

1. Representative martensitic stainless steel, low cost and stable price without Ni contect;
2. Higher tensile strength and good hardenability, Good cutability under annealed state;
3. Not good in cold formability and weldability, should make heat treatment shortly after welding to avoid any crack.
420/420J1 (2Cr13) stainless steel: High hardness & resistant to corrosion can be attained by quenching.
420J2 (3Cr13) stainless steel: Higher hardness than 420 after quenching (Magnetic).

● Applications

Due to higher tensile and hardness, widely applied in Bearing, precise instrument and meter, knives, water headers, valves, utensile, turbine and some mechanical components etc.

● Chemical Composition

GRADE	400 SERIES, MAX, %
GRADE	C	Mn	P	S	Si	Cr	Ni	Mo	N	Others
405	0.08	1.0	0.04	0.03	1.0	11.5-14.5	0.6	-	-	Al 0.10-0.30
409L	0.03	1.0	0.04	0.02	1.0	10.5-11.7	0.5	-	0.03	Ti 63(C+N) min, 0.50 max; Cb 0.17
410	0.08-0.15	1.0	0.04	0.03	1.0	11.5-13.5	0.75	-	-	-
410S	0.08	1.0	0.035	0.03	1.0	11.5-13.5	0.6	-	-	-
420J1	0.16-0.25	1.0	0.04	0.03	1.0	12.0-14.0	-	-	-	-
420J2	0.26-0.4	1.0	0.04	0.03	1.0	12.0-14.0	-	-	-	-
430	0.12	1.0	0.04	0.03	1.0	16.0-18.0	0.75	-	-	-
434	0.12	1.0	0.04	0.03	1.0	16.0-18.0	-	0.75-1.25	-	-
436	0.12	1.0	0.04	0.03	1.0	16.0-18.0	-	0.75-1.25	-	Cb 53C min,0.80 max
439	0.03	1.0	0.04	0.03	1.0	17.0-19.0	0.5	-	0.03	Ti [0.20+4(C+N)] min, 1.10 max; Al 0.15
443	0.025	1.0	0.04	0.03	1.0	20.0-23.0	0.5	-	0.025	(Ti+Cb)83(C+N) min, 0.80 max. Cu: 0.3-0.8
444	0.025	1.0	0.04	0.03	1.0	17.5-19.5	1	1.75-2.5		(Ti+Cb)[0.20+4(C+N)] min,0.80 max; Cu≤0.035
447	0.01	0.3	0.025	0.02	0.2	28.0-30.0	0.15	3.5-4.2	0.02	(C+N) 0.025, Cu≤0.15
